Product Details

1.SHUYOU DX generator is designed for the most demanding monopolar and bipolar procedures. It adjusts automatically, responding to tissue changes, maintaining power delivery, and minimizing drag. This offers a smoother cut through all tissue types.

2.Product parameter(specification) of the Electro Surgical Generator

Note: Unit is available in other HF power ratings on request.

Fuction

Configuration

Packaging

LEAKAGE CURRENTS

•       RF leakage current

•   Monopolar : < 150 mA rms

•       Bipolar : < 60 mA rms

•       Low Frequency leakage currents

•       Normal polarity, Intact ground : <   10 µA

•       Normal polarity, Ground open : < 50   µA

DIMENSIONS

L   x W x H in cm - 45.0 x 35.5 x 11.5,

PREM   SYSTEM

Measuring   Frequency : 85 kHz ± 10 kHz

Measuring   current : < 10 µA

Acceptable   Resistance Range.

Dual   Area PREM Patient Return Electrode : 10-135 Ω

Single   Area Patient Return Electrode : < 10 Ω



DIMENSIONS

L   x W x H in cm - 45.0 x 35.5 x 11.5,

FEEDBACK   SYSTEM

•       3 Microprocessor Controlled 6SENSE   Technology with sampling rate above 4000 sense/second

•       Maximum output power deviation < 15%   or 5 watts, whichever is greater at any setting with PER-98

DIMENSIONS

L   x W x H in cm - 45.0 x 35.5 x 11.5,

INPUT   POWER

Operating   Voltage : 180-265 Volt AC, (other ratings available on request)

Max.   Power input : 1000 VA,

Fuse   : 4 A, UPS Backup : 1.5KVA



DIMENSIONS

L   x W x H in cm - 45.0 x 35.5 x 11.5,

3. Product Features

●Self Diagnosis: Ensure the ESU with accessories are safe for functioning & display Error Codes if any.

●Bipolar Cut : Macro mode can be used for bipolar cutting with hooks and other cutting devices. ,. Upgradability: Argon Beam Coagulation, Ultrasonic Aspirator, Smoke Evacuator,Suction Irrigation module.

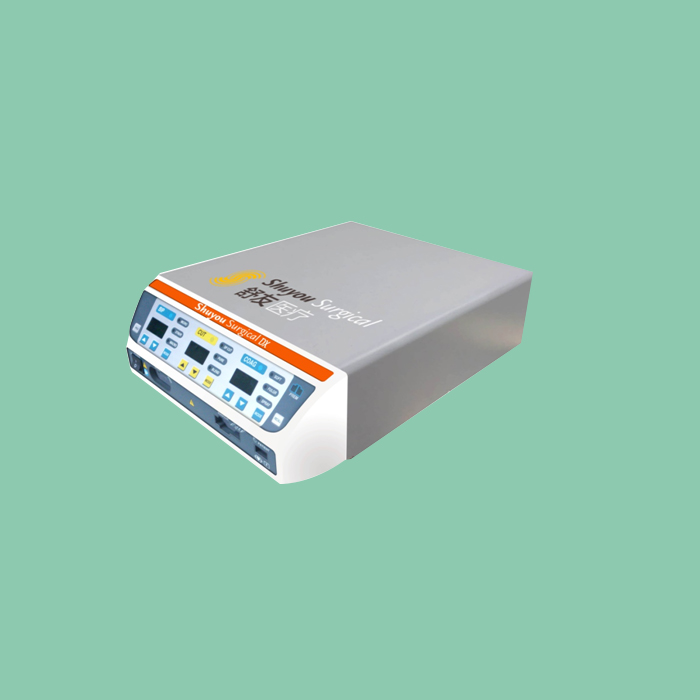

Electro Surgical Generator (SHUYOU DX)

Electrosurgical Generator.jpg
